- Size: 1681.5mm2
- Place of Origin: zhangjiagang
- Brand Name: Rui xu mechanical
- Model Number: RXMG-35
- Weight: 0.150 kg

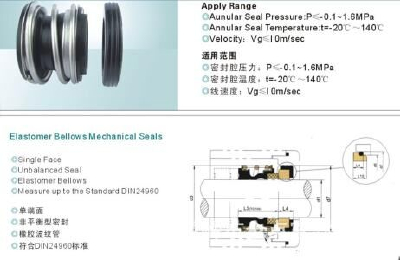

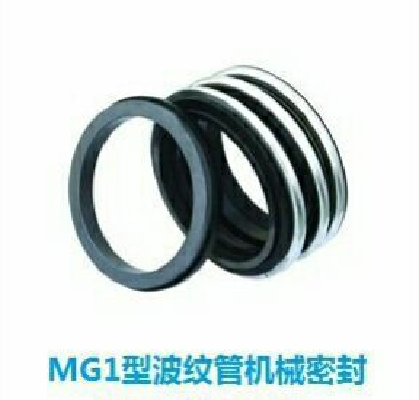

RX - MG1 type mechanical seal
Scope of application:
Sealed medium: waste water containing particles, oil and water.
Seal chamber pressure: 1.6 Mpa or less
Seal chamber temperature: - 20 ℃ ~ 140 ℃
Linear speed: 10 m/s or less
- Size: 1681.5mm2
- Place of Origin: zhangjiagang
- Brand Name: Rui xu mechanical
- Model Number: RXMG-35
- Weight: 0.150 kg
规格\尺寸 | d | D | D1 | D2 | D3 | L | L1 | L2 | L3 | L4 | L5 | L6 | L7 |
10 | 10 | 22.5 | 21 | 24.60 | 19.2 | 14.5 | 25.9 | 33.4 | 25.0 | 6.6 | 10.0 | 9.0 | 6.6 |
12 | 12 | 25.0 | 23 | 27.80 | 21.6 | 15.0 | 25.9 | 33.4 | 25.0 | 6.6 | 10.0 | 9.0 | 5.6 |
14 | 14 | 28.5 | 25 | 30.95 | 24.6 | 17.0 | 28.4 | 33.4 | 25.0 | 6.6 | 10.0 | 10.5 | 5.6 |
15 | 15 | 28.5 | 27 | 30.95 | 24.6 | 17.0 | 28.4 | 33.4 | 25.0 | 6.6 | 10.0 | 10.5 | 6.6 |
16 | 16 | 28.5 | 27 | 30.95 | 28 | 17.0 | 28.4 | 33.4 | 25.0 | 6.6 | 10.0 | 10.5 | 7.5 |
18 | 18 | 32.0 | 33 | 34.15 | 30 | 19.5 | 30.0 | 37.5 | 25.0 | 7.5 | 11.5 | 10.5 | 8.0 |
20 | 20 | 37.0 | 35 | 35.70 | 35 | 21.5 | 30.0 | 37.5 | 25.0 | 7.5 | 11.5 | 10.5 | 7.5 |
22 | 22 | 37.0 | 37 | 37.30 | 35 | 21.5 | 30.0 | 37.5 | 25.0 | 7.5 | 11.5 | 10.5 | 7.5 |
24 | 24 | 42.5 | 39 | 40.50 | 38 | 22.5 | 32.5 | 42.5 | 25.0 | 7.5 | 11.5 | 10.5 | 7.5 |
25 | 25 | 42.5 | 40 | 40.50 | 38 | 23.0 | 32.5 | 42.5 | 25.0 | 7.5 | 11.5 | 10.5 | 7.5 |
28 | 28 | 49.0 | 43 | 47.65 | 42 | 26.5 | 35.0 | 42.5 | 33.0 | 7.5 | 11.5 | 12.0 | 9.0 |
30 | 30 | 49.0 | 45 | 50.80 | 45 | 26.5 | 35.0 | 42.5 | 33.0 | 7.5 | 11.5 | 12.0 | 10.5 |
32 | 32 | 53.5 | 48 | 50.80 | 48 | 27.5 | 35.0 | 47.5 | 33.0 | 7.5 | 11.5 | 12.0 | 10.5 |
33 | 33 | 53.5 | 48 | 54.00 | 50 | 27.5 | 35.0 | 47.5 | 33.0 | 7.5 | 11.5 | 12.0 | 11.0 |
35 | 35 | 57.0 | 50 | 54.00 | 52 | 28.5 | 35.0 | 47.5 | 33.0 | 7.5 | 11.5 | 12.0 | 11.0 |
38 | 38 | 59.0 | 56 | 57.15 | 55 | 30.0 | 36.0 | 46.0 | 33.0 | 9.0 | 14.0 | 12.0 | 10.3 |
40 | 40 | 62.0 | 58 | 60.35 | 58 | 30.0 | 36.0 | 46.0 | 33.0 | 9.0 | 14.0 | 12.0 | 10.8 |
42 | 42 | 65.5 | 61 | 63.50 | 60 | 30.0 | 36.0 | 51.0 | 51.0 | 9.0 | 14.0 | 12.0 | 12.0 |
43 | 43 | 65.5 | 61 | 63.50 | 62 | 30.0 | 36.0 | 51.0 | 51.0 | 9.0 | 14.0 | 12.0 | 12.0 |
45 | 45 | 68.0 | 63 | 63.50 | 64 | 30.0 | 36.0 | 51.0 | 51.0 | 9.0 | 14.0 | 12.0 | 12.0 |
48 | 48 | 70.5 | 66 | 66.70 | 68.4 | 30.5 | 36.0 | 51.0 | 51.0 | 9.0 | 14.0 | 12.0 | 12.0 |
50 | 50 | 74.0 | 70 | 69.85 | 69.3 | 30.5 | 36.0 | 50.5 | 50.5 | 9.5 | 15.0 | 13.5 | 12.0 |
53 | 53 | 78.5 | 73 | 73.05 | 72.3 | 33.0 | 36.5 | 59.0 | 59.0 | 11.0 | 15.0 | 13.5 | 12.3 |
55 | 55 | 81.0 | 75 | 76.20 | 75.4 | 35.0 | 36.5 | 59.0 | 59.0 | 11.0 | 15.0 | 13.5 | 13.3 |
58 | 58 | 85.5 | 78 | 79.40 | 78.4 | 37.0 | 41.5 | 59.0 | 59.0 | 11.0 | 15.0 | 13.5 | 13.3 |
60 | 60 | 88.5 | 80 | 79.40 | 80.4 | 38.0 | 41.5 | 59.0 | 59.0 | 11.0 | 15.0 | 13.5 | 13.3 |
65 | 65 | 93.5 | 85 | 95.10 | 85.4 | 40.0 | 41.5 | 69.0 | 69.0 | 11.0 | 15.0 | 16.0 | 13.0 |
68 | 68 | 96.5 | 90 | 95.25 | 91.5 | 40.0 | 41.5 | 68.7 | 68.7 | 11.3 | 18.0 | 16.0 | 13.7 |
70 | 70 | 99.5 | 92 | 95.25 | 92 | 40.0 | 48.7 | 68.7 | 68.7 | 11.3 | 18.0 | 16.0 | 13.0 |
75 | 75 | 107.0 | 97 | 101.60 | 99 | 40.0 | 48.7 | 68.7 | 68.7 | 11.3 | 18.0 | 16.0 | 14.0 |
80 | 80 | 112.0 | 105 | 114.30 | 104 | 40.0 | 48.0 | 78.0 | 78.0 | 12.0 | 18.2 | 20.0 | 15.0 |
85 | 85 | 120.0 | 110 | 117.50 | 109 | 41.0 | 46.0 | 76.0 | 76.0 | 14.0 | 18.2 | 20.0 | 14.8 |
90 | 90 | 127.0 | 115 | 123.85 | 114 | 45.0 | 51.0 | 76.0 | 76.0 | 14.0 | 18.2 | 20.0 | 14.8 |
95 | 95 | 132.0 | 120 | 127.00 | 120.3 | 46.0 | 51.0 | 76.0 | 76.0 | 14.0 | 17.2 | 20.0 | 15.8 |
100 | 100 | 137.0 | 125 | 133.35 | 123.3 | 47.0 | 51.0 | 76.0 | 76.0 | 14.0 | 17.2 | 20.0 | 15.8 |
